MTL5018 MTL Instruments Proximity Detector Interface
MTL5018 enables two safe-area loads to be controlled by two switches or proximity detectors located in a hazardous area. Two relay outputs are provided. Independent phase reversal control allows an alarm condition to be signalled for either state of the sensor. A selectable line fault detect (LFD) facility detects an open or short circuit in either field circuit
Specification
Product type : Proximity Detector Interface
Number of channels : Two
Safe-area output : Two relays with changeover contacts
Hazardous-area inputs : Inputs conforming to NAMUR/DIN 19234 standards for proximity detectors
Voltage applied to sensor : 7 to 9V from 1kO ±10%
Relay type : Single pole, changeover contacts
Isolation : 250V ac or dc between power supply, hazardous-area circuits and relay outputs
Safety description (each channel) : 10.5V, 800O, 14mA, Um= 250V rms or dc
Weight : 2 Kg
Related Models:
| HCU16 | MTL5521 |
| HCU3700 | MTL5522 |
| HM64RIB20-1.0 | MTL5531 |
| HM64RIB20-1.5 | MTL5532 |
| HMM64 | MTL5541 |
| HMRIB16-1.0 | MTL5541S |
| HMS64 | MTL5544 |
| HTP-SC32 | MTL5544D |
| MTL4044D | MTL5546 |
| MTL4511 | MTL5546Y |
| MTL4516 | MTL5561 |
| MTL4516C | MTL5573 |
| MTL4521 | MTL5575 |
| MTL4541 | MTL5582B |
| MTL4541 | MTL7728+ |
| MTL4544 | MTL7756AC |
| MTL4544D | MTL7760AC |
| MTL4546Y | MTL7761PAC |
| MTL4549Y | MTL7765AC |
| MTL4573 | MTL7787+ |
| MTL4575 | MTL7787P+ |
| MTL4646Y | MTLCPS16 |
| MTL4850 | NJ5-18GK-N |
| MTL4851 | SD150X |
| MTL4852 | SD32 |
| MTL5018 | SD32X |
| MTL5032 | SDRTD |
| MTL5042 | SLP32D |
| MTL5044 | TP48-3-I-NDI |
| MTL5049 | TP48-3-N-NDI |
| MTL5511 | TP48-4-I-NDI |
| MTL5514D | TP48-4-N-NDI |
| MTL5516 | TP48-N-NDI |
| MTL5516C | ZB24571 |
Product Tags:
|
|

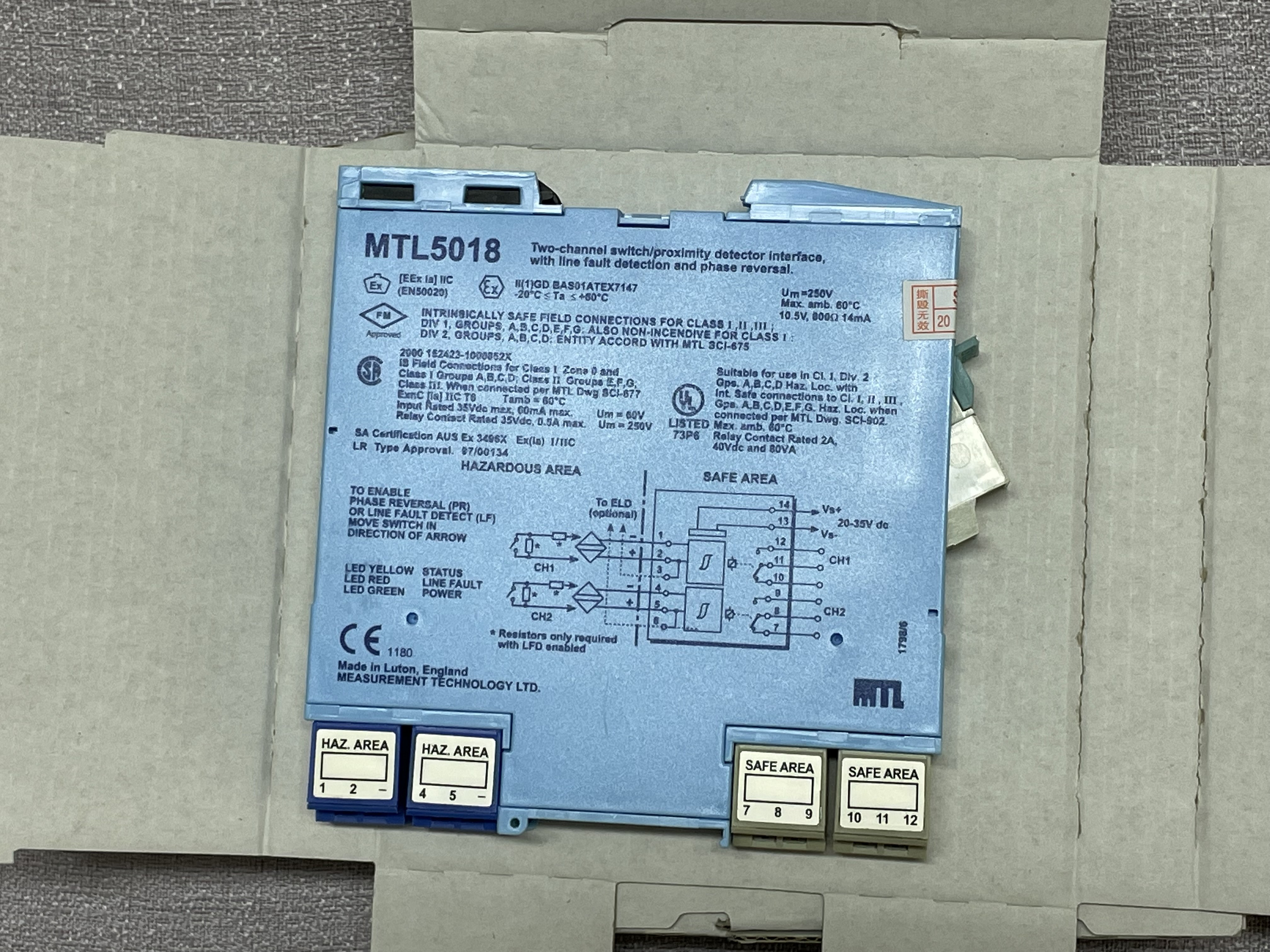

MTL5018 MTL Instruments Proximity Detector Interface Images
|
